Professional data acquisition. Democratized.
Triple-IMU suspension analysis at 800 Hz,
survey-grade GPS. Open platform.
One device, every bike. $400.
02
PRODUCT / DATALOGGER
IDL1
A · ARCHITECTURE
IDL1 tracks suspension behavior — frequency domain analysis of motion across three STM LSM6DSO32 IMUs mounted at front suspension, rear suspension, and chassis.
Steering angle is a derived channel from differential IMU fusion, not a bolt-on sensor. The u-blox MAX-M10S puts survey-grade GPS accuracy under every speed-dependent calculation.
The result: understeer and oversteer gradients that used to require a professional data engineer and thousands in hardware.
B · OPEN PLATFORM

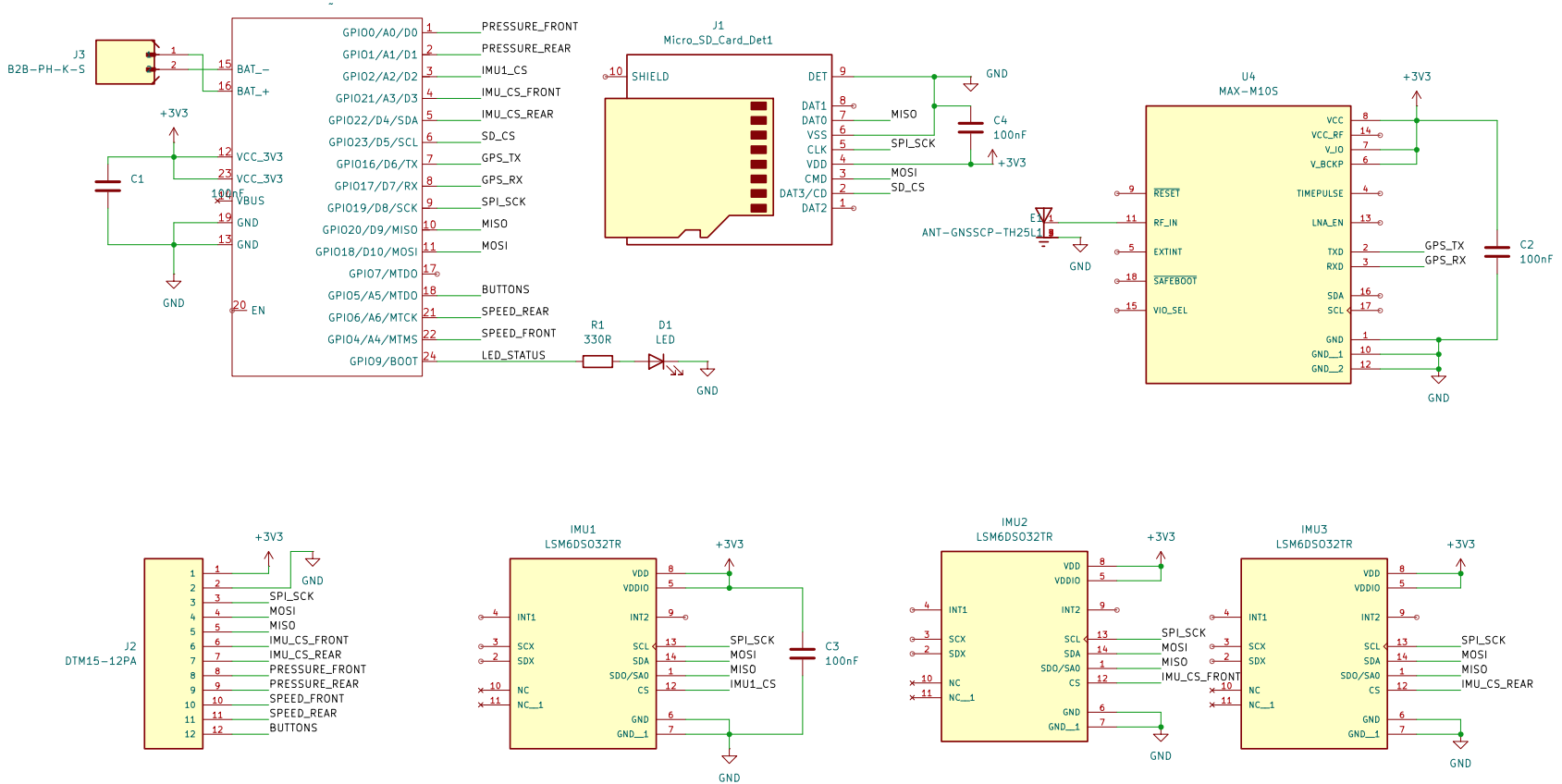

Open schematic. MIT firmware on GitHub. Modify your analysis stack, write your own, or run ours.
The platform is yours.
C · ONE DEVICE / MULTIPLE BIKES
Buy additional harnesses and swap the IDL1 between vehicles with a single connector. One device in your kit bag covers your whole stable.
03
SERVICES / CONTRACT
Applied Engineering
Systems
Software
Embedded systems, firmware, data pipelines. The full stack from sensor to screen.
- 01Firmware / RTOS
- 02Sensor fusion
- 03Pipelines / storage
- 04Analysis tooling
Race Support
Onsite data acquisition and analysis. We bring the hardware and work the data with you.
- 01Track-side install
- 02Live acquisition
- 03Session analysis
- 04Setup feedback loop
Available for contract work. Reach out to discuss scope. → isaac@saucyeng.com
